Application
Industries, Panel Builders, Construction, Projects.
Type
70° C Heat Resistant PVC
Size
Upto 10sq. mm. -100 mtr. Coils 116-130sq. mm.
H05V-K and H07-K sizes from 0.5 sq. mm to 300 sq. mm.

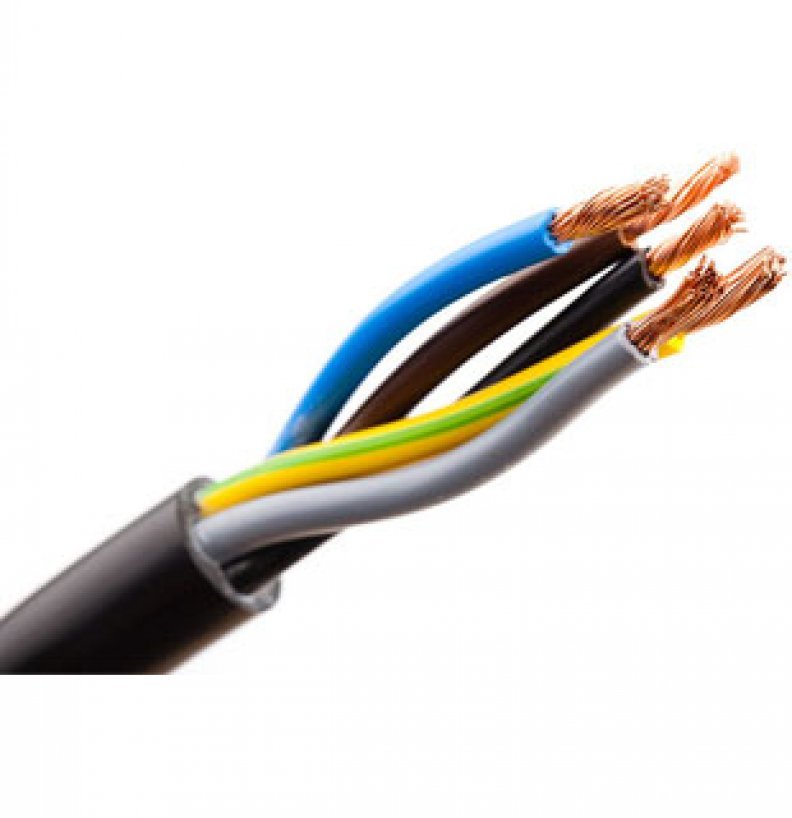

Multi Strand Single Core Unsheathed Flexible Cables With Bright Annealed Electrolytic Copper Conductor For Voltage Grade Upto 1100 Volts.
| Area(Sq.mm) | Approximate No.of wire/Nominal Wire Diameter No./mm | Insulation Thickness(Nom.)mm | Insulation Diameter (Approx.)mm | Conductor Resistance @ 20C (max)ohm/km | In conduit/Trunking(Amp) | Unenclosed Clipped directly to a surface or On cable tray(Amp) | Remarks |
|---|---|---|---|---|---|---|---|
| 0.5 | 16/0.20 | 0.6 | 2.3 | 39.0 | 4 | 4.5 |
Note:
|
| 0.75 | 24/0.20 | 0.6 | 2.5 | 26.0 | 7 | 7 | |
| 1.0 | 14/0.3 | 0.6 | 2.8 | 18.10 | 11 | 12 | |
| 1.5 | 22/0.3 | 0.6 | 3.1 | 12.10 | 13 | 16 | |
| 2.5 | 36/0.3 | 0.7 | 3.8 | 7.41 | 18 | 22 | |
| 4.0 | 56/0.3 | 0.8 | 4.4 | 4.95 | 24 | 29 | |
| 6.0 | 84/0.3 | 0.8 | 5.0 | 3.30 | 31 | 37 | |
| 10 | 80/0.4 | 1.0 | 6.5 | 1.91 | 42 | 51 | |
| 16 | 144/0.376 | 1.0 | 7.8 | 1.21 | 57 | 68 | |
| 25 | 196/0.40 | 1.2 | 11.0 | 0.78 | 71 | 86 | |
| 35 | 276/0.40 | - | 12.5 | 0.554 | 91 | 100 | |
| 50 | 396/0.40 | 1.4 | 14.5 | 0.386 | 120 | 145 | |
| 70 | 360/0.50 | 1.4 | 15.0 | 0.272 | - | 214 | |
| 95 | 475/0.50 | 1.6 | 17.5 | 0.206 | - | 260 | |
| 120 | 608/0.50 | 1.6 | 19.0 | 0.161 | - | 305 | |
| 150 | 750/0.50 | 1.8 | 22.0 | 0.129 | - | 355 |
