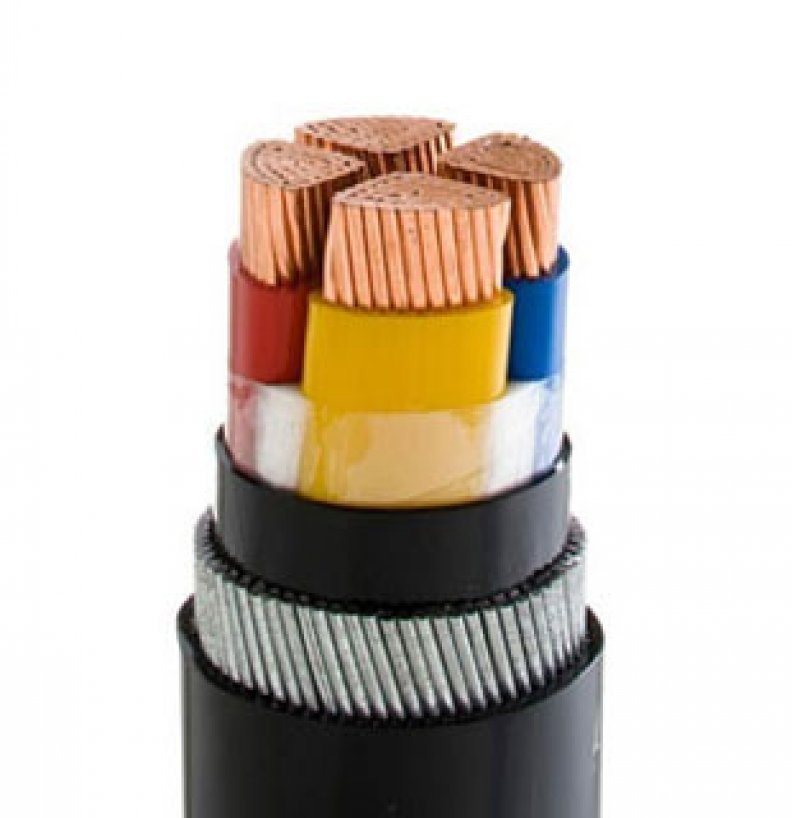

LT COPPER Armored / Unarmored Cables

Home /Power and Control Cables /LT COPPER Armored / Unarmored Cables

LT COPPER Armored / Unarmored Cables, in 1.1 kV, XLPE / PVC insulated .

Application

Industries , Projects.

Type

1.1 & 3.3 kv for Electrical Substations as per IS:1554-I & 2/ IS 7098-1 & 2

Size

Single Core 10 to 1000 sq. mm

Multicore 6 to 630 sq. mm




Multi Strand Single Core Unsheathed Flexible Cables With Bright Annealed Electrolytic Copper Conductor For Voltage Grade Upto 1100 Volts.

Area In Sq. mm Conductor Construction in General Cond. Dia. In mm Max. DC resistance ohm/Km at 20°C Insulation Thickness in mm Nominal Cables Dia (Approx.) Current Rating in Amp
0.5 16/0.20 0.94 39 0.6 2.2 4
0.75 24/0.20 1.2 26 0.6 2.5 7
1 32/0.20 1.34 19.5 0.6 2.6 11
1.5 30/0.25 1.64 13.3 0.6 2.9 14
2.5 50/0.25 2.08 7.98 0.7 3.5 19
4 56/0.30 2.61 4.95 0.8 4.3 26
6 84/0.30 3.5 3.3 0.8 5.3 33
